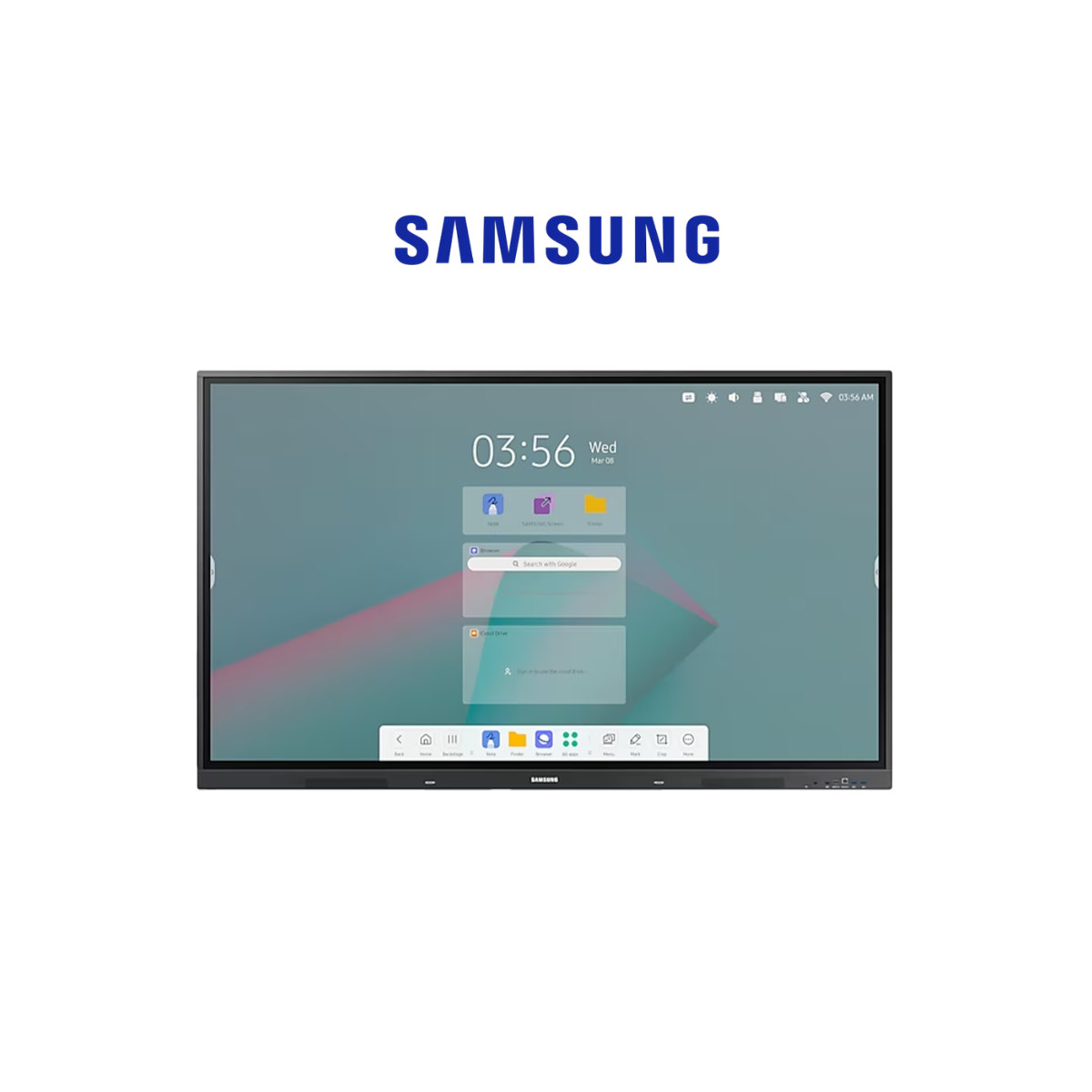

Samsung WAF Series 65 & 75 Inch 4K Interactive Flat Panel

The Samsung WAF Series Interactive Flat Panel is a professional 4K smart digital board designed for schools, coaching institutes, colleges, training centres and corporate meeting rooms. Available in 65-inch and 75-inch screen sizes, it combines Android 14, Google EDLA certification, responsive multi-touch technology and convenient connectivity to support modern teaching and collaboration.

With 8GB RAM, 64GB internal storage, an octa-core processor and up to 40 touch points, the Samsung WAF Series allows educators to present digital lessons, annotate content, share compatible devices and encourage classroom participation.

Available Models and Sizes

Model	Display Size	Resolution
Samsung LH65WAFWLNCXXL	65 Inches	3840 × 2160
Samsung LH75WAFWLNCXXL	75 Inches	3840 × 2160

Key Features of Samsung WAF Interactive Display

• 65-inch and 75-inch 4K UHD interactive display options
• Android 14 operating system with Google EDLA certification
• 8GB RAM and 64GB internal storage
• Powerful octa-core processor
• Up to 40 simultaneous infrared touch points
• Responsive digital annotation and writing
• Split Note Mode with four independent writing zones
• Google Play and supported Google applications
• Wireless screen sharing from compatible devices
• USB Type-C connectivity
• Two integrated 15W speakers
• Wi-Fi 5 and wireless peripheral connectivity
• OPS slot for compatible optional computing modules
• Anti-glare display surface
• Convenient front-facing connectivity

4K UHD Display for Clear Classroom Presentations

Samsung WAF Series displays feature 3840 × 2160 Ultra High Definition resolution, providing detailed visuals for presentations, diagrams, educational videos and digital learning materials.

With 400 nits typical brightness, a 1200:1 typical contrast ratio and wide 178-degree viewing angles, the screen supports comfortable viewing across classrooms and meeting spaces.

Android 14 with Google EDLA Certification

The Samsung WAF Series runs Android 14 and features Google EDLA certification. Teachers can use compatible Google applications and educational services, including Google Play, YouTube, Chrome and Google Drive, subject to account requirements and network availability.

The familiar Android interface helps educators access supported teaching resources and digital content without relying on an external computer for every task.

8GB RAM and 64GB Internal Storage

An octa-core processor, 8GB RAM and 64GB storage provide an integrated computing environment for compatible applications, presentations, whiteboarding and multimedia learning resources.

Teachers can move between supported learning tools and classroom activities using the built-in operating system.

40-Point Multi-Touch Technology

The Samsung WAF Series supports up to 40 simultaneous infrared touch points, enabling students and teachers to interact with compatible content together.

The specified touch response time is 5ms or less under Samsung's testing conditions, supporting responsive writing and annotation.

Annotation and Split Note Mode

The WAF Series includes an accessible annotation feature that allows teachers to write over compatible on-screen content.

Split Note Mode divides the writing surface into four independent zones, making it useful for group activities, simultaneous problem solving and classroom discussions.

Wireless Screen Sharing

Wireless screen-sharing functionality allows teachers to present compatible content from connected devices. This helps educators display teaching materials, presentations and student work without depending exclusively on wired connections.

Available sharing methods and device compatibility depend on the software and network configuration.

USB Type-C and Multiple Connectivity Options

Samsung WAF Series displays provide connections for compatible computers, presentation devices and peripherals.

• 2 HDMI inputs
• 1 HDMI output
• 1 USB Type-C input
• 2 USB 3.0 ports
• 2 USB 2.0 ports
• 2 touch USB outputs
• RJ45 Ethernet
• RS-232C input
• Audio input and output
• OPS expansion slot

The USB Type-C connection supports compatible presentation and touch workflows. Charging capability depends on the connected equipment and port specifications.

Built-In 30W Audio System

The Samsung WAF Series features two built-in 15W speakers. The integrated audio system supports educational videos, classroom presentations and multimedia learning content.

Additional audio equipment can be considered for larger rooms or specialised teaching requirements.

Samsung WAF Series Technical Specifications

Specification	Samsung 65 Inch WAF	Samsung 75 Inch WAF
Model	LH65WAFWLNCXXL	LH75WAFWLNCXXL
Display Size	65 Inches	75 Inches
Resolution	3840 × 2160	3840 × 2160
Aspect Ratio	16:9	16:9
Refresh Rate	60Hz	60Hz
Brightness	400 nits	400 nits
Contrast Ratio	1200:1	1200:1
Viewing Angle	178° / 178°	178° / 178°
Response Time	8ms	8ms
Operating System	Android 14	Android 14
Google Certification	EDLA	EDLA
Processor	Octa-Core A73 × 4 + A53 × 4	Octa-Core A73 × 4 + A53 × 4
RAM	8GB	8GB
Storage	64GB	64GB
Touch Technology	Infrared	Infrared
Touch Points	40	40
Touch Response	≤5ms	≤5ms
Speakers	15W × 2	15W × 2
Wi-Fi	Wi-Fi 5	Wi-Fi 5
HDMI Inputs	2	2
HDMI Output	1	1
USB Type-C	1	1
USB Type-A	4	4
OPS Slot	Yes	Yes
VESA Mount	600 × 400mm	800 × 400mm
Dimensions	1482.1 × 891.4 × 87.7mm	1716.5 × 1031.8 × 86.9mm
Display Weight	36.2kg	49.2kg
Typical Power Consumption	172W	209W
Power Supply	AC 100–240V, 50/60Hz	AC 100–240V, 50/60Hz

Applications of Samsung Interactive Flat Panel

Schools and Smart Classrooms

Present lessons, diagrams, multimedia content and collaborative classroom exercises on a large interactive display.

Coaching Institutes

Explain complex topics using digital annotation, interactive writing and visual teaching materials.

Colleges and Universities

Support classroom presentations, educational discussions and collaborative academic activities.

Corporate Meeting Rooms

Use the display for presentations, planning sessions, whiteboarding and supported content sharing.

Training Centres

Conduct workshops, demonstrations and interactive training sessions using compatible applications.

Frequently Asked Questions

1. What is Samsung WAF Series Interactive Flat Panel?

It is a 4K UHD interactive display designed for education, presentations and collaborative activities.

2. What sizes are available?

This product listing offers 65-inch and 75-inch variants.

3. Which operating system does Samsung WAF use?

The WAF Series uses Android 14 with Google EDLA certification.

4. How much RAM and storage does it have?

It includes 8GB RAM and 64GB internal storage.

5. Does it support Google Play Store?

Yes. The EDLA-certified operating environment supports compatible Google applications and services.

6. How many touch points are supported?

The display supports up to 40 simultaneous touch points.

7. Can teachers write directly on the display?

Yes. The interactive display supports digital annotation and whiteboarding.

8. Does it support wireless screen sharing?

Yes. Wireless screen sharing is available for compatible devices.

9. Does it have built-in speakers?

Yes. The display includes two 15W speakers.

10. Can an external computer be connected?

Yes. Compatible computers can connect through supported video and touch interfaces.

11. Is an OPS computer included?

The display includes an OPS expansion slot. The OPS computer is optional unless specifically included in the seller's package.

12. What is the Samsung WAF Interactive Flat Panel price in India?

The price depends on screen size, available offers and the seller's current quotation. Select the required variant to view its listed selling price.

Buy Samsung WAF Series Interactive Flat Panel in India

Upgrade your classroom or workplace with the Samsung WAF Series 65 & 75 Inch Interactive Flat Panel. Featuring 4K UHD resolution, Android 14, Google EDLA certification, 40-point touch and integrated educational tools, it provides a practical solution for digital teaching and collaboration.

Order from Smart Infovision or contact the team for product demonstrations, bulk purchase quotations, installation options and delivery information.
