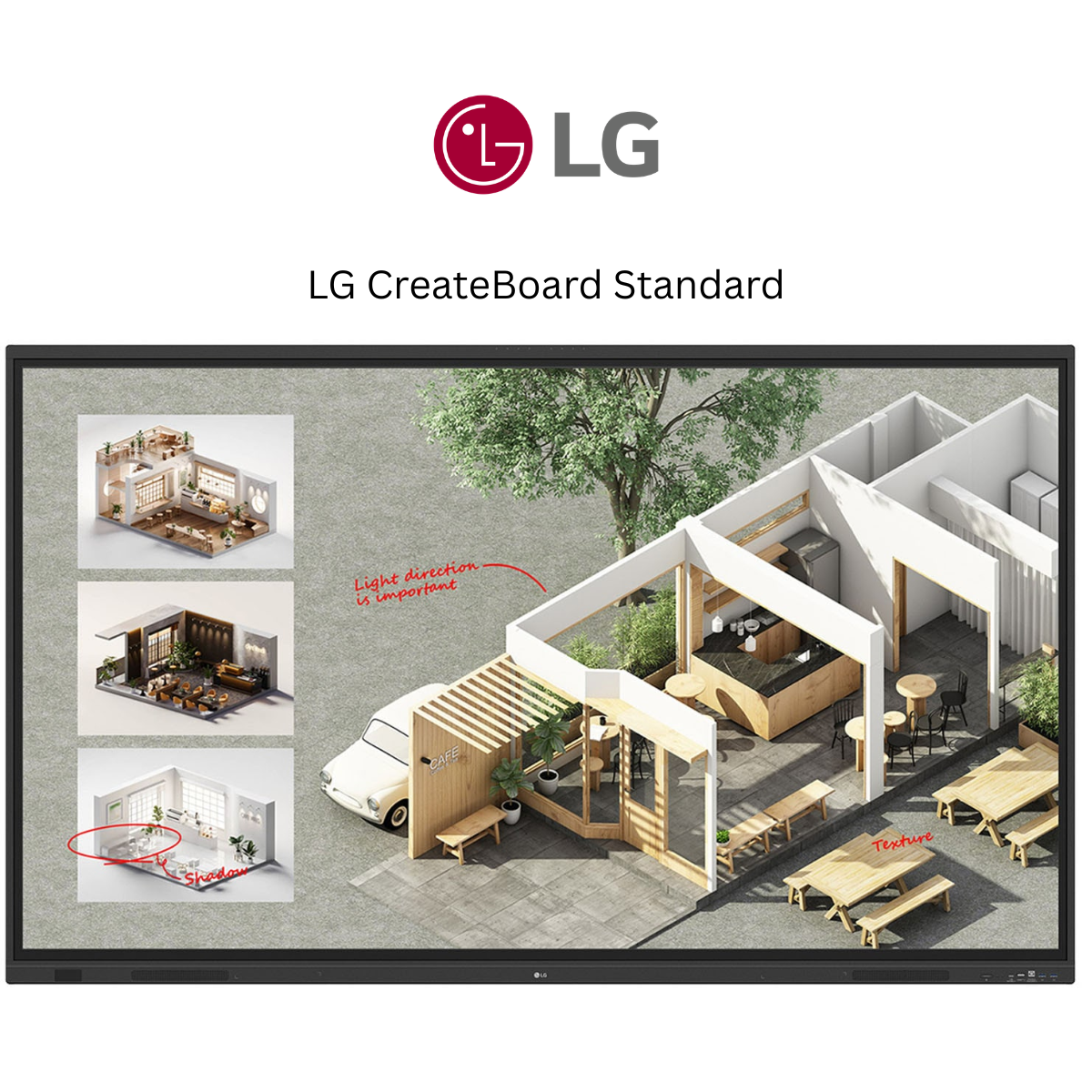

LG CreateBoard 86TR3DQ-I – 86 Inch 4K Interactive Flat Panel

The LG CreateBoard 86TR3DQ-I is a premium 86-inch 4K UHD interactive digital board designed for smart classrooms, colleges, universities, coaching institutes, corporate meeting rooms, and professional training environments. Combining a large IPS display, Android 14 with Google EDLA certification, 50-point multi-touch functionality, and intelligent collaboration tools, this interactive flat panel helps transform traditional teaching and presentation spaces into modern digital environments.

With 8GB RAM, 64GB internal storage, Wi-Fi 6E, Bluetooth 5.3, and 450 nits brightness, the LG 86TR3DQ-I delivers a flexible platform for interactive lessons, multimedia presentations, digital whiteboarding, and collaborative meetings.

Key Features of LG CreateBoard 86TR3DQ-I

• 86-inch IPS display with 4K UHD resolution (3840 × 2160)
• Android 14 operating system with Google EDLA certification
• Up to 50 simultaneous touch points
• 8GB RAM and 64GB internal storage
• 450 nits brightness and 178-degree viewing angles
• LG CreateBoard Lab interactive whiteboarding software
• LG CreateBoard Share wireless screen-sharing functionality
• Support for sharing up to nine screens simultaneously
• Built-in 20W × 2 speakers and 20W subwoofer
• Eight built-in microphones
• Wi-Fi 6E and Bluetooth 5.3 connectivity
• Two USB Type-C ports and three HDMI inputs
• Anti-glare tempered protection glass
• Compatible OPS expansion slot
• Screen Lock, USB Lock Mode, and automatic file removal options

86-Inch 4K UHD IPS Display

The LG CreateBoard features a large 86-inch IPS panel with 3840 × 2160 Ultra High Definition resolution. Its expansive screen makes educational diagrams, presentations, spreadsheets, multimedia content, and interactive lessons easier to view in larger rooms.

The 450 nits brightness, 1200:1 typical contrast ratio, and wide viewing angles help deliver clear visuals for classroom instruction and professional presentations.

Android 14 with Google EDLA Certification

Powered by Android 14, the LG 86TR3DQ-I supports Google EDLA-certified functionality, allowing users to access compatible Google applications and services where available.

Teachers can use supported educational applications, access online learning resources, and integrate digital content into their lessons. Business users can work with compatible productivity applications and collaboration tools.

Google services require an appropriate account, internet connectivity, and regional availability.

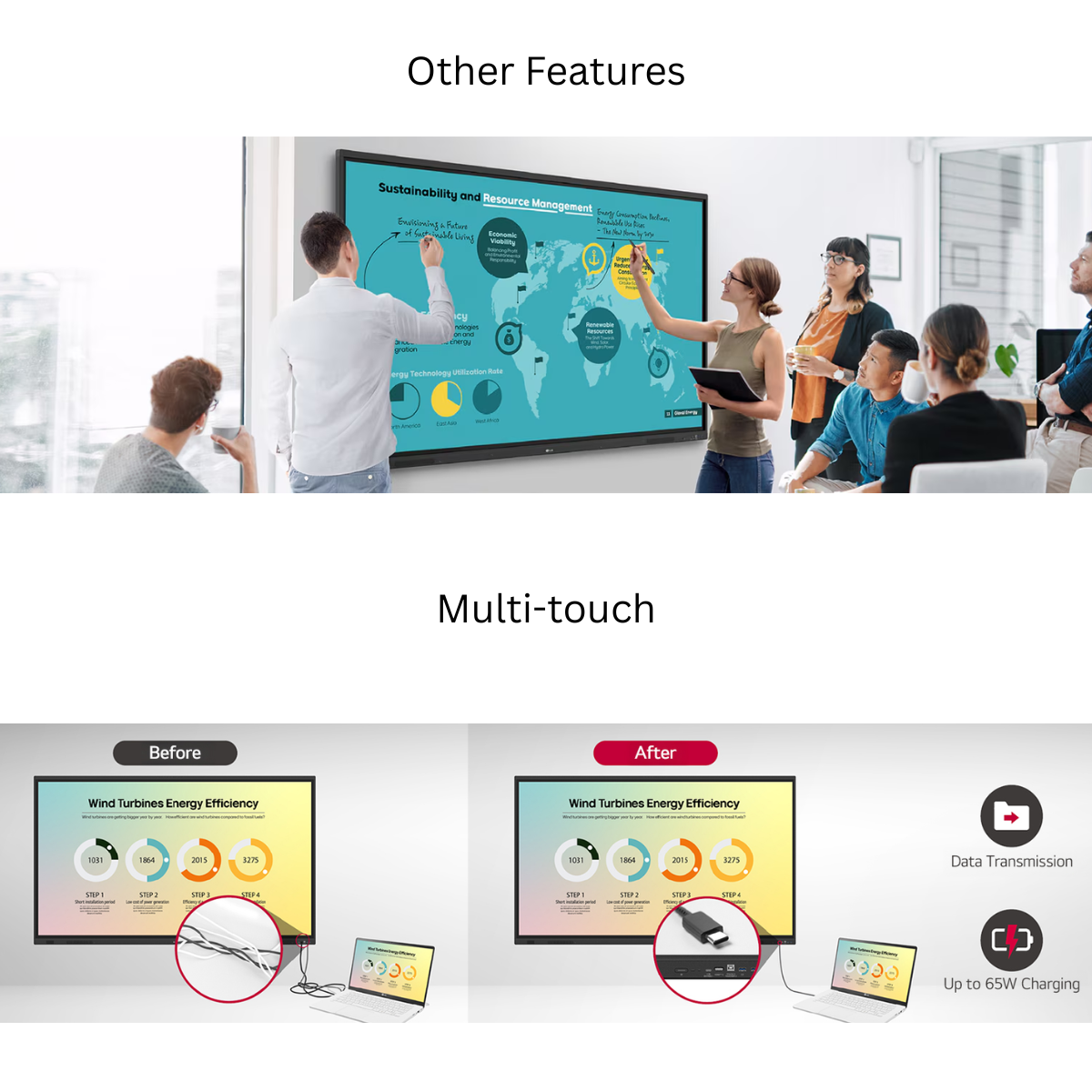

50-Point Multi-Touch Interactive Technology

The LG CreateBoard supports up to 50 simultaneous touch points, enabling collaborative writing, annotation, drawing, and interactive activities.

Multiple participants can interact with compatible content during classroom exercises, training workshops, or team brainstorming sessions.

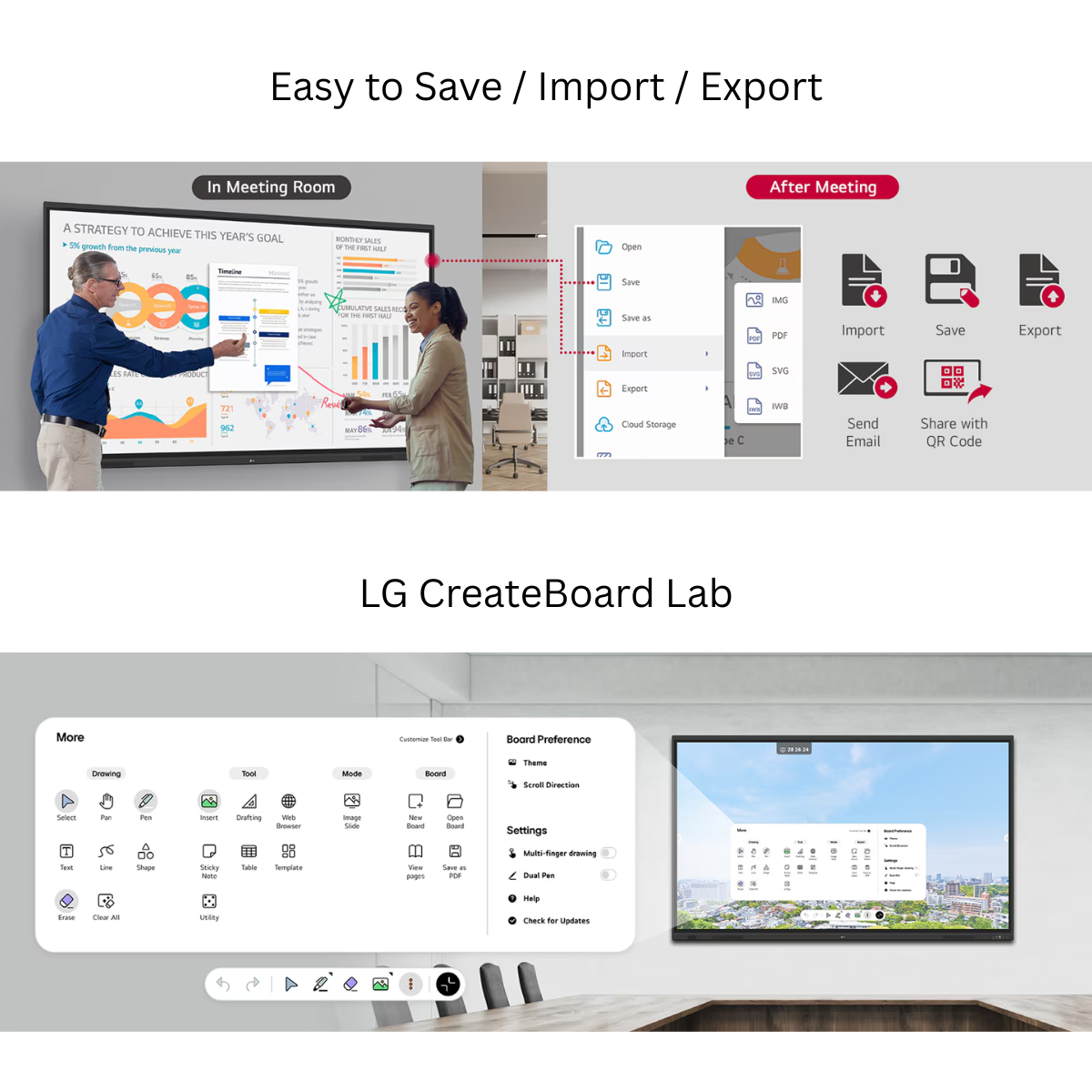

LG CreateBoard Lab – Interactive Whiteboarding

LG CreateBoard Lab provides a digital workspace for teaching, planning, and presenting. Users can write, draw, organize ideas, and use interactive tools to explain concepts more effectively.

Whiteboarding Features

• Digital writing and drawing
• Interactive educational templates
• Ruler, calculator, table, clock, and sticky-note tools
• Importing and exporting supported content
• Google Drive and OneDrive integration
• Sharing materials through supported email and QR-code workflows
• Access to online reference material through a web browser

LG CreateBoard Share – Wireless Screen Sharing

LG CreateBoard Share allows compatible laptops, tablets, and smartphones to share content wirelessly with the interactive display.

With support for up to nine shared screens, educators and business teams can present multiple sources of information during lessons, meetings, and collaborative discussions.

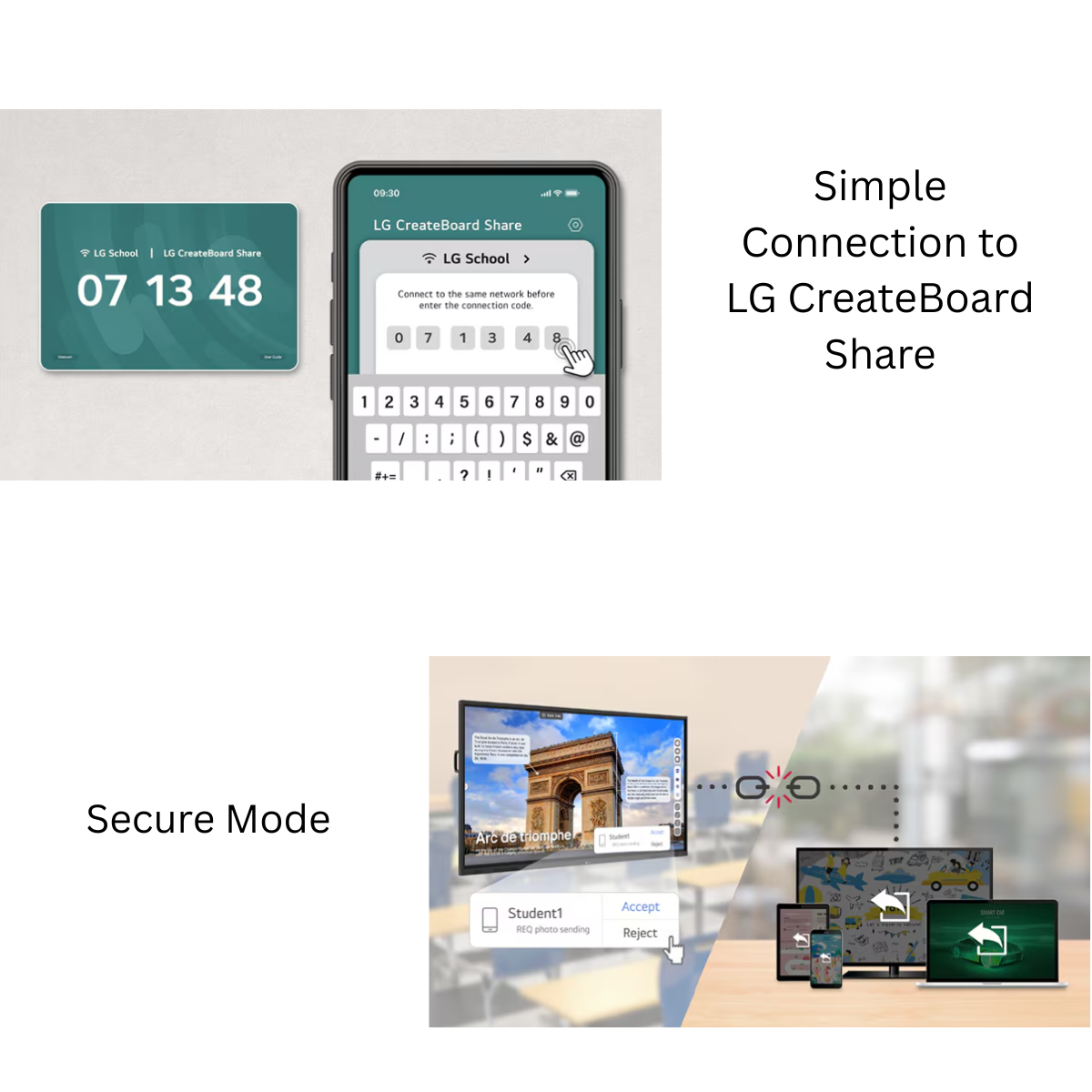

The software also provides a secure sharing mode to help prevent unauthorized screen sharing. App-based and supported browser-based sharing options are available, subject to network and device compatibility.

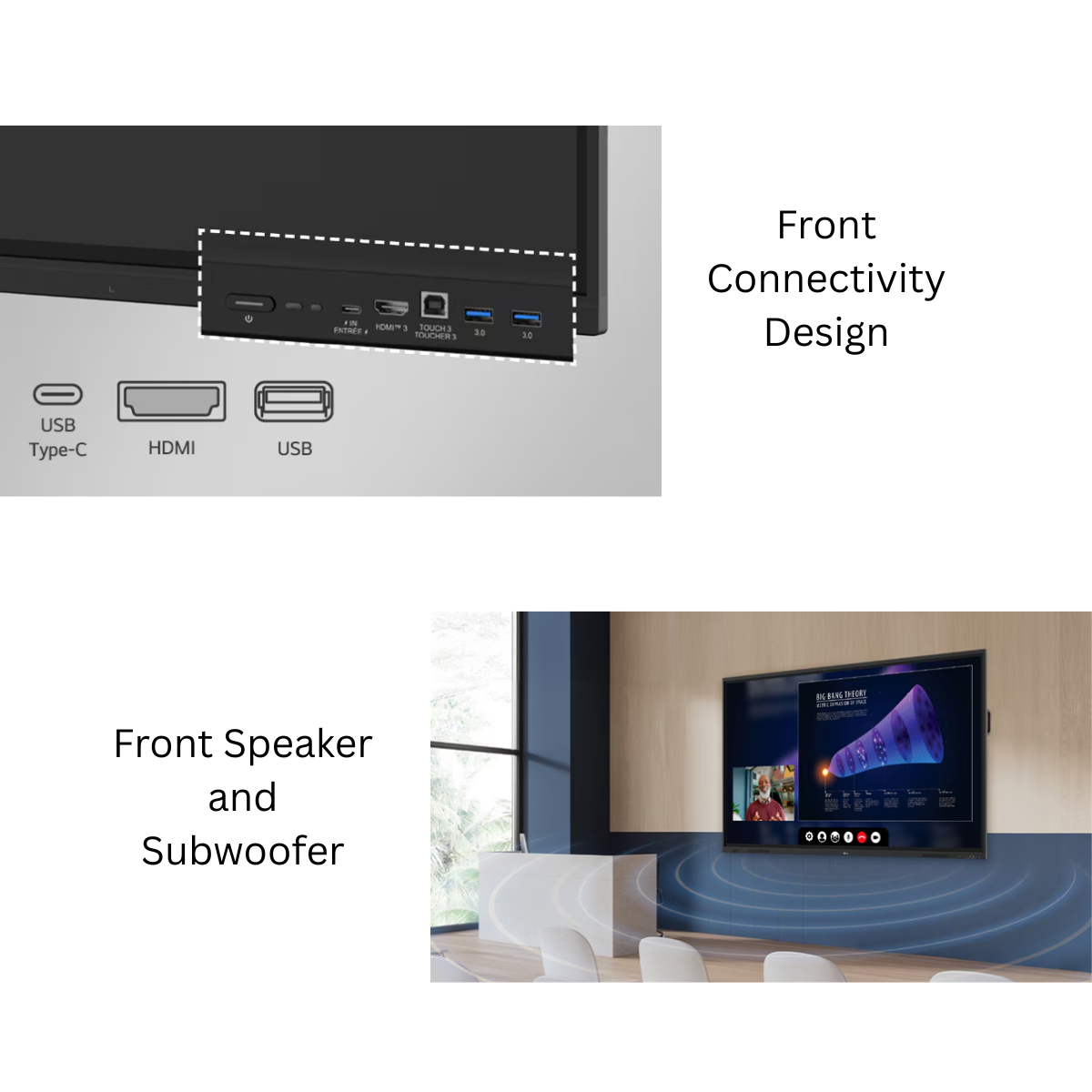

Built-In Speakers and Microphones

The LG 86TR3DQ-I includes two 20W speakers and a dedicated 20W subwoofer for multimedia playback and presentation audio.

Eight built-in microphones support compatible communication and conferencing workflows. Additional video conferencing equipment or software may be required depending on the application.

Wi-Fi 6E and Bluetooth 5.3 Connectivity

The interactive panel supports Wi-Fi 6E for compatible wireless network connections and Bluetooth 5.3 for connecting supported accessories such as keyboards, mice, and speakers.

These connectivity options help create a flexible digital classroom or collaborative office environment.

Multiple Connectivity Options

The LG CreateBoard 86TR3DQ-I offers a selection of physical interfaces for integrating computers, presentation devices, network equipment, and compatible peripherals.

• 3 HDMI inputs
• 1 HDMI output
• 1 DisplayPort input
• 1 VGA input
• 2 USB Type-C ports
• 5 USB 3.0 Type-A ports
• 1 USB 2.0 Type-A port
• 3 Touch USB connections
• RJ45 LAN input and output
• Audio input and output
• Optical audio output
• RS-232C input

Security and Device Management

LG CreateBoard includes practical security features for shared classrooms and business environments.

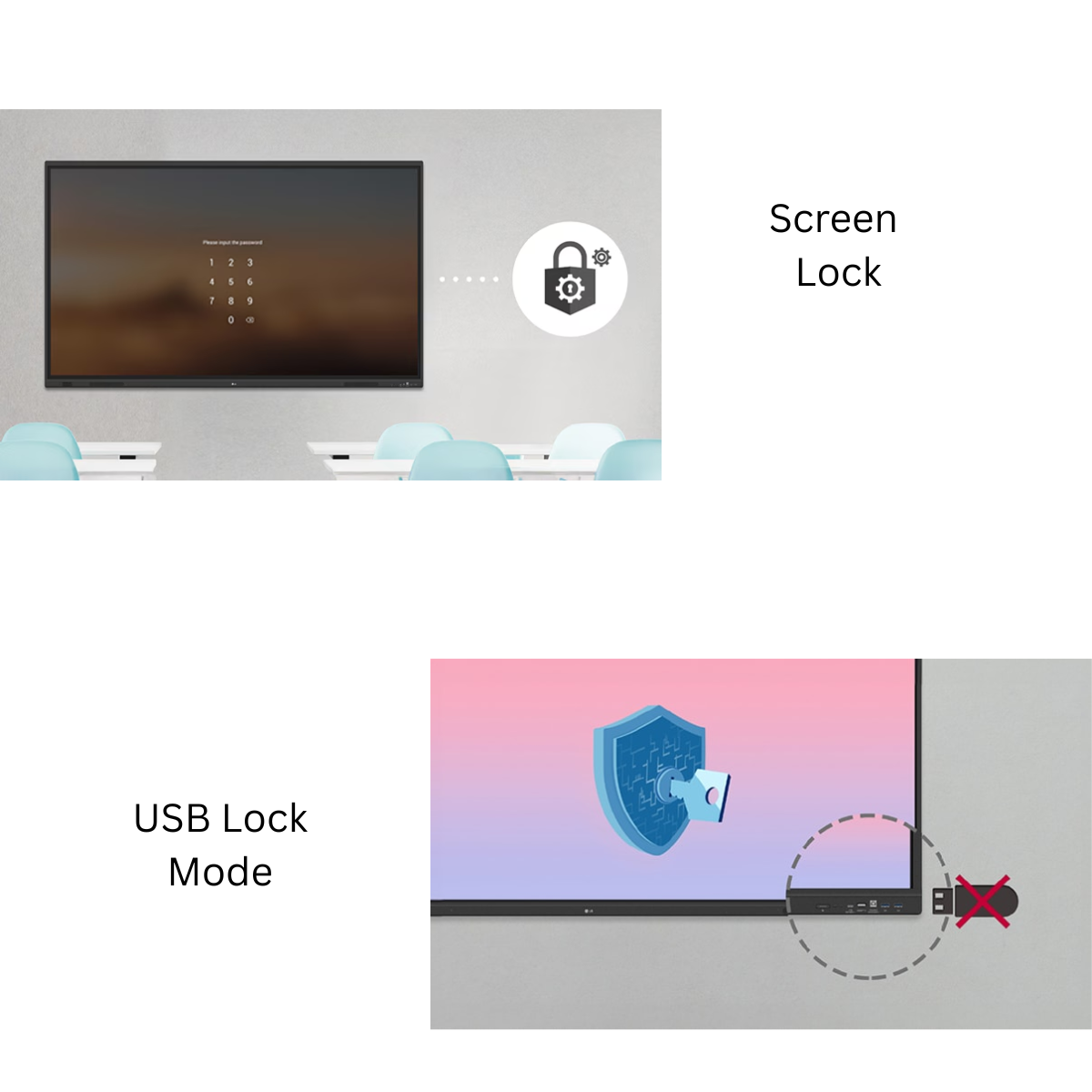

• Screen Lock: Restrict access through password-based protection.
• USB Lock Mode: Control USB usage in security-sensitive environments.

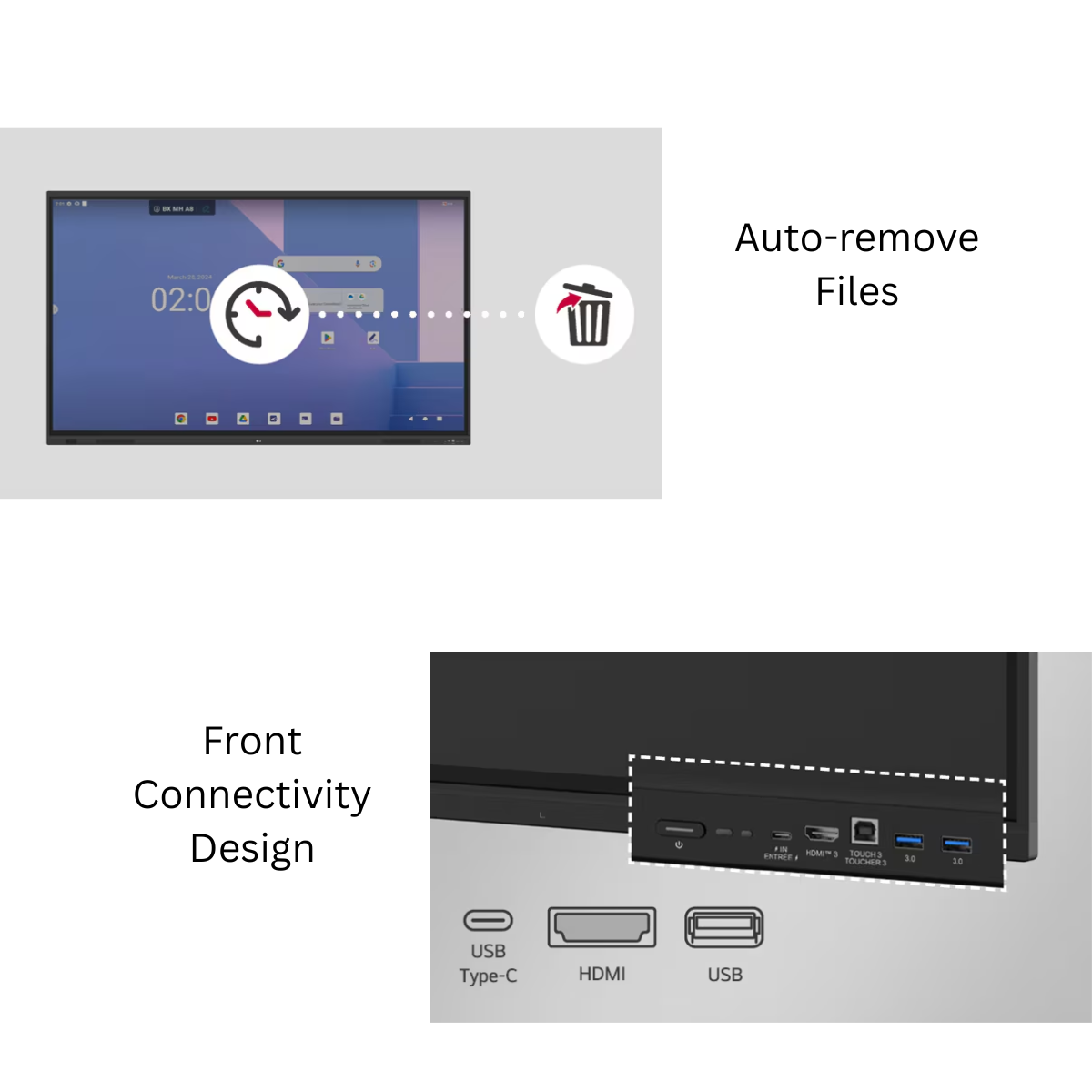

• Auto-remove Files: Configure regular file deletion.
• Secure Sharing: Manage permission for wireless screen sharing.

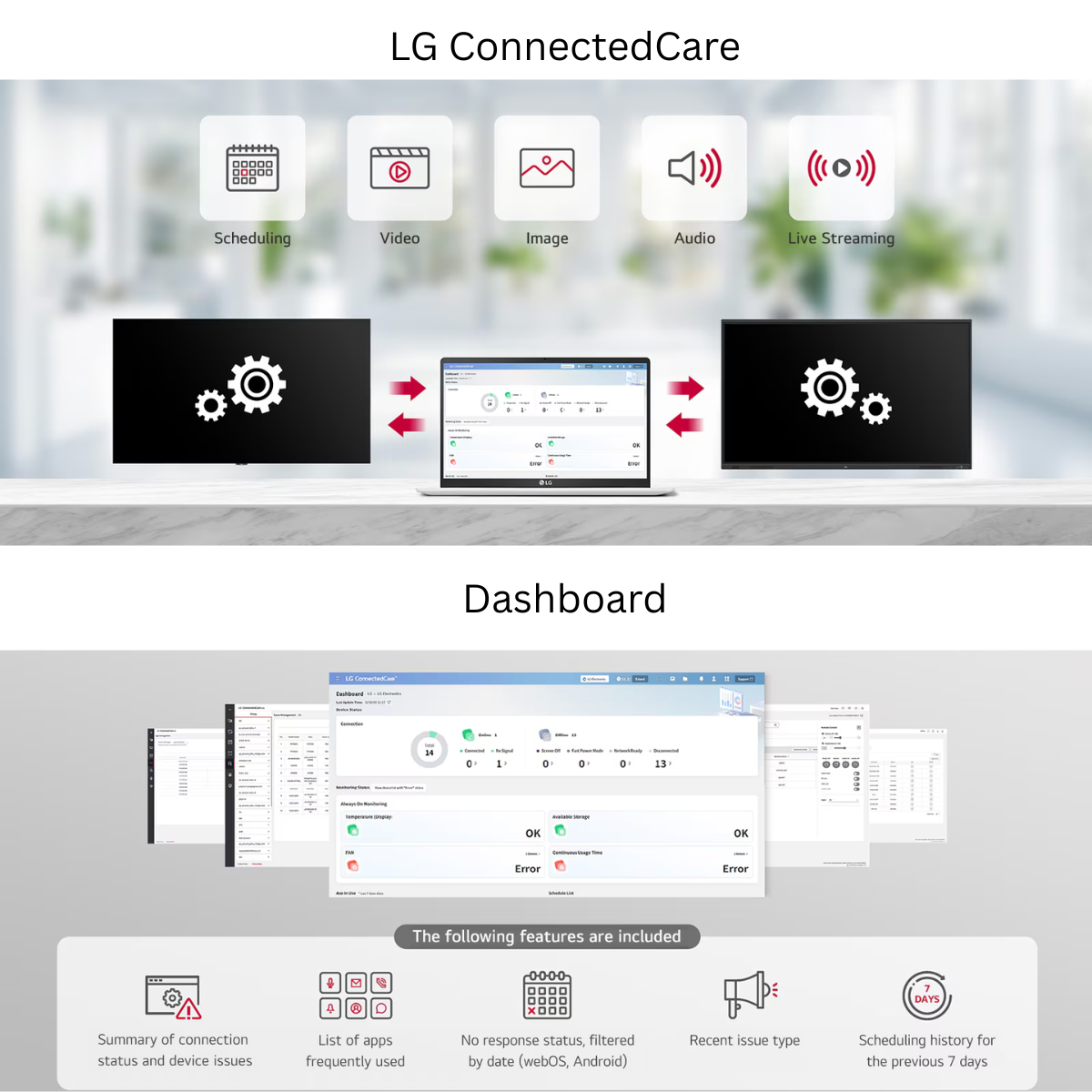

• LG ConnectedCare: Optional remote monitoring and device management solution, purchased separately and subject to regional availability.

LG CreateBoard 86TR3DQ-I Technical Specifications

Applications of LG 86-Inch Interactive Digital Board

Smart Classrooms

Suitable for interactive teaching, educational presentations, visual demonstrations, and digital learning activities.

Schools and Universities

Supports multimedia instruction, collaborative classroom exercises, and digital educational content.

Coaching Institutes

Useful for large-screen explanations, digital notes, diagrams, test discussions, and interactive lessons.

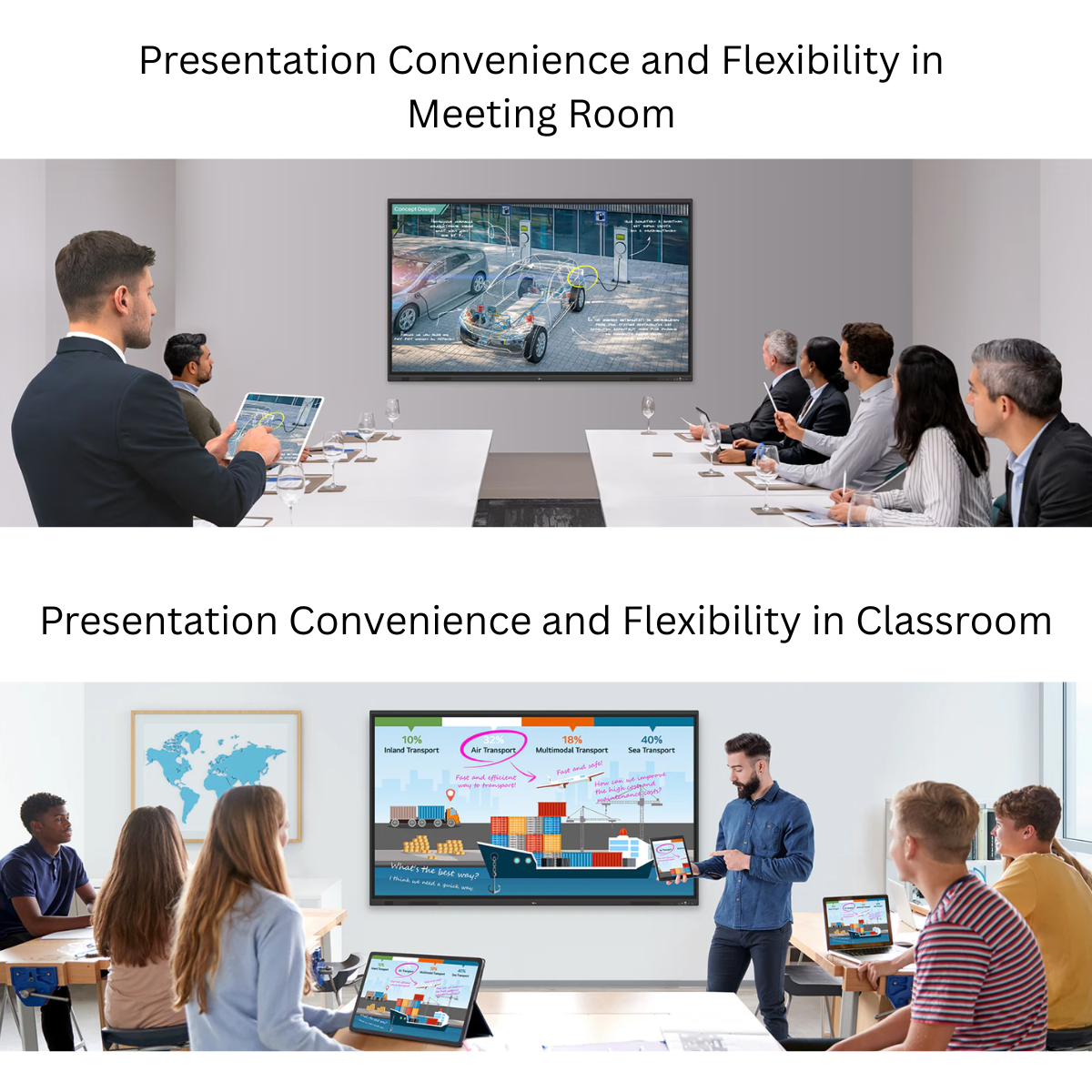

Corporate Meeting Rooms

Provides an interactive display for presentations, team planning, brainstorming, and collaboration.

Training Centres

Supports professional workshops, employee training, demonstrations, and digital presentations.

Frequently Asked Questions

1. What is LG CreateBoard 86TR3DQ-I?

It is an 86-inch 4K UHD interactive flat panel designed for education, meetings, training, and collaborative presentations.

2. Which operating system does it use?

The LG 86TR3DQ-I uses Android 14 with Google EDLA certification.

3. How much RAM and storage does it have?

It includes 8GB RAM and 64GB internal storage.

4. How many touch points does it support?

The display supports up to 50 simultaneous touch points.

5. Does it support wireless screen sharing?

Yes. LG CreateBoard Share supports wireless screen sharing from compatible devices.

6. Can multiple devices share content simultaneously?

Yes. LG CreateBoard Share supports displaying up to nine shared screens, depending on compatible devices and network conditions.

7. Does the display have built-in speakers?

Yes. It includes two 20W speakers and a 20W subwoofer.

8. Does it have built-in microphones?

Yes. The model includes eight built-in microphones.

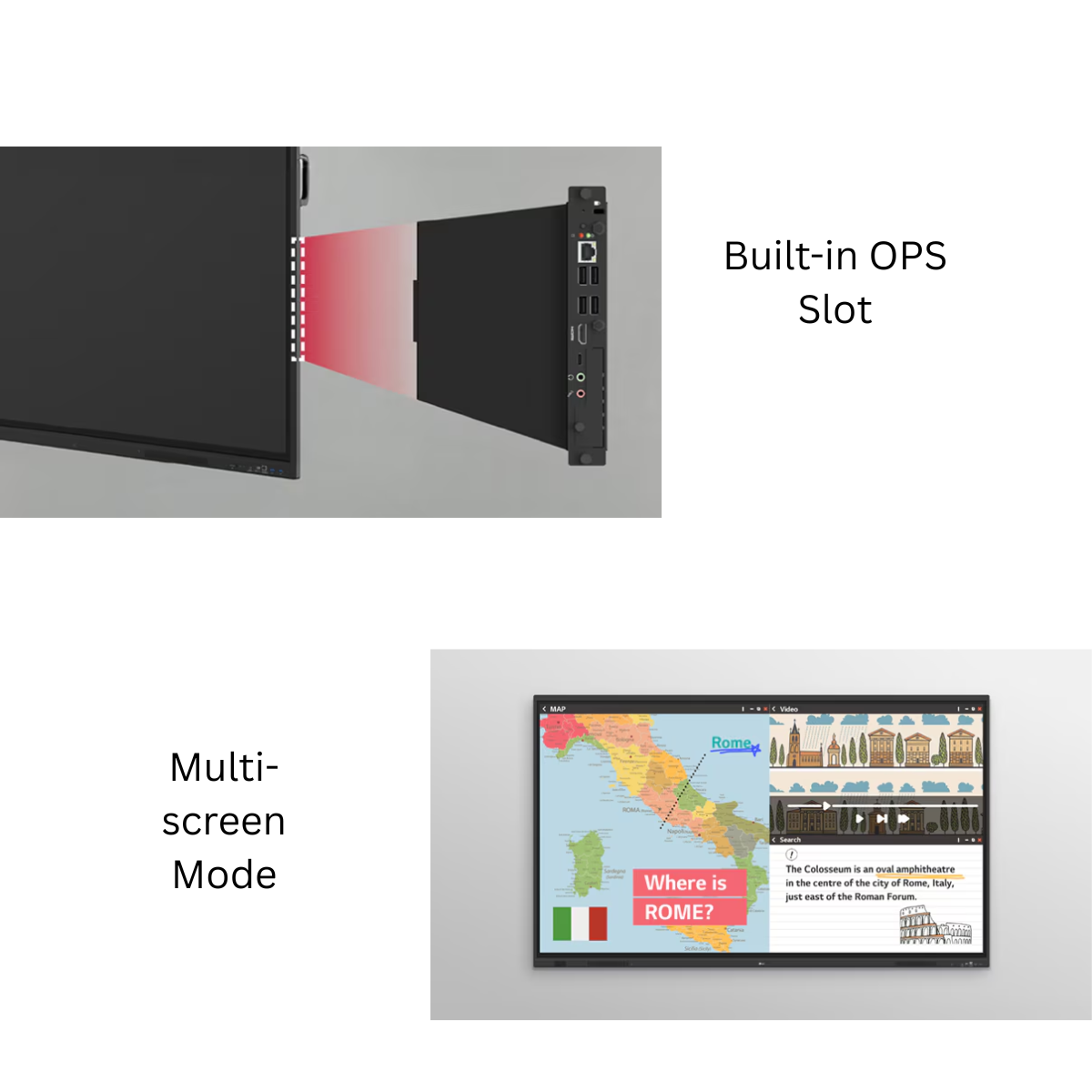

9. Can a Windows OPS computer be connected?

Yes. The display supports compatible OPS expansion modules, which are sold separately.

10. Is LG 86TR3DQ-I suitable for smart classrooms?

Yes. Its large display, interactive whiteboarding, multi-touch support, and presentation tools make it suitable for smart classrooms.

11. What is the LG 86TR3DQ-I price in India?

Pricing varies depending on supplier quotation, availability, taxes, installation, and optional accessories. Contact the seller for the latest price.

12. Does it support Google applications?

Yes. Google EDLA certification provides access to supported Google services, subject to account requirements and regional availability.

Buy LG CreateBoard 86TR3DQ-I in India

Upgrade your institution or workplace with the LG CreateBoard 86TR3DQ-I 86 Inch 4K Interactive Flat Panel. Its large IPS screen, Android 14 operating system, collaborative touch technology, and modern connectivity make it a practical solution for digital education and professional presentations.

Contact us for the latest LG CreateBoard 86TR3DQ-I price in India, product availability, bulk purchase quotations, and installation support.
